LUX ELEMENTSSystems for WELLNESS

• Walls made of straight hard foam support elements for square or rectangular rooms
• Wall thickness 50 or 80 mm
• Matching, customised mounting material available (optional)

• Walls made of straight hard foam support elements for square or rectangular rooms, combined with glass mounting parts
• Wall thickness 50 or 80 mm
• Matching, customised mounting material available (optional)

• Walls made of rounded or straight hard foam support elements for all room shapes
• Wall thickness 50 or 80 mm
• Combinable with glass mounting parts
• Matching, customised mounting material available (optional)

Block profile – CONCEPT-DOOR-TZ B

Flat profile – CONCEPT-DOOR-TZ F

Offers individual room constructions the greatest trans-parency: Combination of profile frames with block frames including glass door hinges as well as 8 mm tempered safety glass elements (ESG panes)

Profile construction – CONCEPT-DOOR-GFZ

• Aluminium

Frame construction – CONCEPT-DOOR-GFR

• Aluminium, frame profile for window opening

Glass elements – CONCEPT-DOOR-GFG

• ESG 8 mm to fit GFZ/GFR combination, if necessary including holes for handle/door knob/door hinges

Floor elements – CONCEPT-BO

• With gradient (30/45 mm) and factory-fitted seal
• For point or linear drainage
• Matching, customised mounting material available (optional)

Substrate elements – CONCEPT-UBO

• 55 mm thick

• Standard thickness 50 or 80 mm, fits the wall
• Substrate preparation possible, e.g. for the screwed connection of shower heads or suspensions

• Standard thickness 50 or 80 mm, fits the wall
• Substrate preparation possible, e.g. for the screwed connection of shower heads or suspensions

• Standard thickness 50 or 80 mm, fits the wall
• Substrate preparation possible, e.g. for the screwed connection of shower heads or suspensions

• Standard thickness 50 or 80 mm, fits the wall
• Substrate preparation possible, e.g. for the screwed connection of shower heads or suspensions

• Special shapes according to customer requirements
• Suspension points for ceiling suspension
• Light channels for the installation of light ropes

• 4 design variants – straight and rounded, with and without milling for light rope ADD-LI L
• Seat with slight slope
• Made of solid material, with integrated assembly channel
• Freely combinable with all CONCEPT-BA L backrests

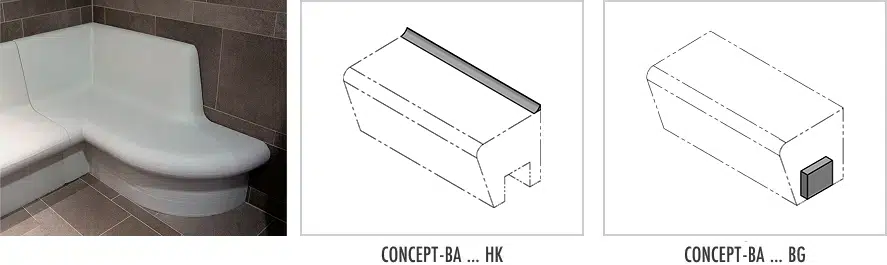

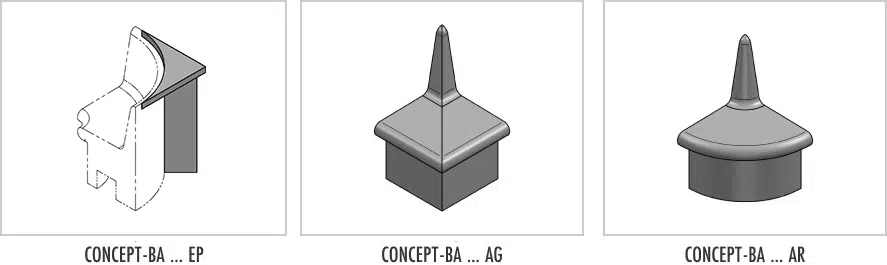

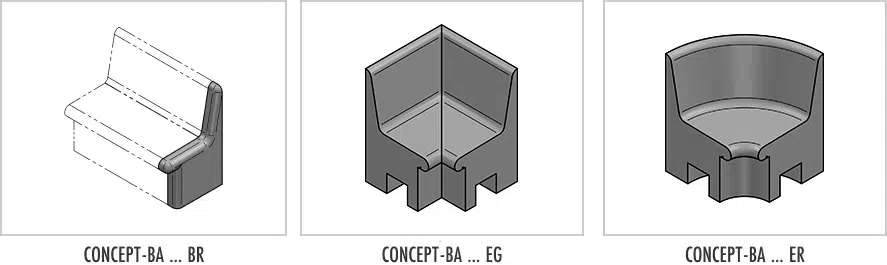

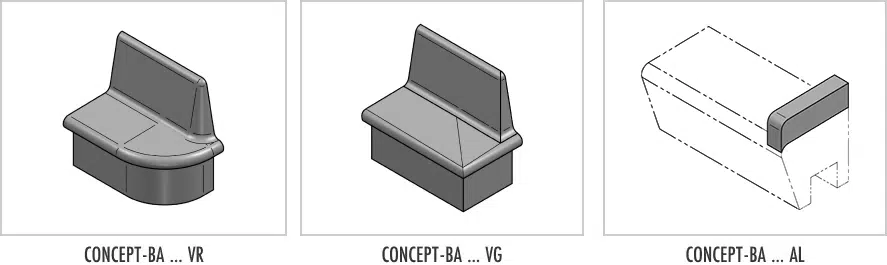

• Optional extensions – CONCEPT-BA …
• Optional: Factory-installed seat heating – ADD-EH/-WH (F)

Design variants

Special shapes – alternatively we can also realise your individual planning as a customized product.

• 5 design variants – straight and rounded,
• Freely combinable with all bench seats without backrest CONCEPT-BA S
• Final product made of solid material
• Optional extensions: CONCEPT-BA …
• Optional: Factory-installed seat heating – ADD-EH / -WH (F)

Design variants

PLEASE NOTE: The bench seat variant and backrest can be freely combined. The combinations shown are only examples.

The principle:

1 All CONCEPT-BA S… (bench seats without backrest) …

2 … are freely combinable with all the CONCEPT-BA L… (backrests) …

… and will be transformed into a bench seat with backrest – CONCEPT-BA S…L…

3 The newly defined end product is then manufactured in the factory and delivered as a single component, made entirely of solid material.

Special shapes – alternatively we can also realise your individual planning as a customized product.

• Freely combinable with all bench seats without backrest – CONCEPT-BA S
• Freely combinable with all bench seats with backrest – CONCEPT-BA S + CONCEPT-BA L
• Final product made of solid material
• Optional: Factory-installed seat heating and lighting

Alternatively we can also realise your individual  planning as a customised product.

• 4 design variants – straight and rounded
• Two drainage variants to choose from
• Assembly channel integrated
• Final product made of solid material
• Optional extensions: CONCEPT-BA…
• Optional: Factory-installed seat heating and lighting

Design variants

The drainage solutions are optional, as they are only used in the steam bath area. This is not necessary in the pool / in dry areas.

Special shapes – alternatively we can also realise your individual planning as a customized product.

• Straight or with corners
• Stable stainless steel construction
• Heating and lightin

• Prefabricated element for the fastening of fittings
• Einfache Montage von Armaturen durch stabilen Untergrund
• Factory-integrated (IPA-I) or for self-installation in a  room construction (IPA-E)
• Surcharge for IPA-I/IPA-E: factory-fitted pipework with flush-mounted iBox from Hansgrohe plus the associated fittings; all connections are pressed and tested

Basic principle

1 Front panel, ELEMENT-EL 20, inserted loosely
2 Mounting plate, glued in the factory
3 Wall plate 1/2″, internal thread to DN20
4 Aluminium composite pipe DN20, insulated
5 Flush-mounted fitting, iBox (hansgrohe)
6 Adapter piece 3/4″, external threat to DN20

Pipework

• Factory piping according to customer requirements and factory installation of sanitary installations
• Simple piping, complex sanitary installations or iBox from Hansgrohe possible

• Four different sizes, from 150 x 150 mm to 600 x 600 mm
• Easy maintenance of pipes/cables and technical components
• Metal frame, rotatable by 180°: opening to the right or left possible
• Easy opening and closing by light pressure
• Front panel for thinner covering thicknesses
• Factory milling for maintenance opening in the wall element
• Fillers for adaptation to covering thicknesses of 2 or 12 mm

• Temperature-resistant supporting panel for a steam inlet
• Safe feed-through of a steam pipe
• Preparation for different manufacturer types
• Factory-integrated or single
• Three different variants:
  • Support panel 150 x 150 x 30 mm, with 28 mm hole for a steam inlet, incl. sealing sleeve
  • Support panel 250 x 250 x 30 mm, with 45 mm hole for a steam inlet, incl. sealing sleeve
  • Support panel 260 x 260 x 8 mm (on front and rear side) with 110 mm hole for a steam inlet, incl. high-temperature insulating material

Additional charge for technical fixtures, milling, factory-made according to customer’s specification

• For adhering to hard foam
• For the stable fastening, for example, of hose holders or fittings
• Different versions:
  • as running meter, 50 mm or 80 mm wide
  • prefabricated pieces for specific sizes

… of an LED spot mounting sleeve (WDT) – ADD-TE AF/AI

• As a milling for the on-site acceptance of a sealing flange
• Also as a factory-integrated sealing flange
• For subsequent acceptance of a WDT spot integrated sleeve

… of an empty conduit – ADD-TE LF/LI

• Two different standard pipe diameters (25 or 32 mm)
• As a milling in the hard foam support element with loose cover
• Also as a factory-integrated and covered empty conduit
• For the feed-through of electrical cables, e.g. for switch plates

… of a flush-mounted socket (WDT) – ADD-TE UF/UI

• Four different versions: 1, 2, 3 and 4-fold
• As a milling in the hard foam support element for on-site acceptance
• Also as a factory-integrated WDT flush-mounted box

Electrical heating mat ADD-EH – optional for all CONCEPT-BA

• 280 W/m², 230 V
• Factory-fitted
• Individually made to measure
• Incl. temperature sensor
• Separate thermostatic controllers ADD-EH Z, different versions with and without timer

Thermostatic controllers ADD-EH Z

for electrical heating set – ADD-EH

A – without timer, 12A, 230V AC
B – with timer, 12A, 230V AC
C – for mounting in distribution cabinet set, 6A,230V AC, can be snapped onto 35 mm, DIN rail with illuminated digital display (space requirement 2HP)
D – with timer, 16A, 230V AC, LCD display

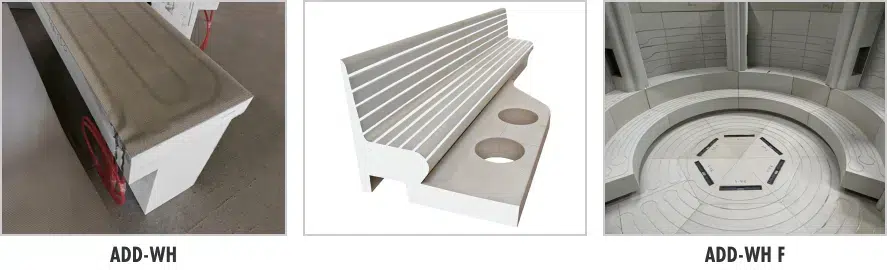

Water heating ADD-WH – optional for all CONCEPT-BA

• Factory-fitted
• Made to measure
• Built-in single-circuit heating system cable approx. 9.9 x 1.1 mm
• With transfer points and leak-tightness check

Milling for water heating – ADD-WH F

• Milling for the on-site installation of water heating
• Individually made to measure

LED spotlight – ADD-LI P

• RGBW – Light colour ‘colored‘ (RGB) and ‘warm white‘ (WW, 3000 K)
• Cover in 5 colour variantes
• Protection class IP65/IP52
• Suitable controller – ADD-LI S
• Suitable remote control – ADD-LI F
• Suitable power supply units – ADD-LI N

Light rope – ADD-LI L

• Flexible, bendable in horizontal direction
• Light colour ‘warm white‘ (WW, 3000 K) or ‘colored‘ (RGB)
• Protection class IP67
• Length to measure, factory-made
• Suitable controller – ADD-LI S
• Suitable remote control – ADD-LI F
• Suitable power supply units – ADD-LI N

Structure-borne sound converter – ADD-SO KSW

• For mid and high frequency sound reproduction on oscillating surface
• ‘Invisible loudspeaker‘ – no negative influence on the wall design
• Including a hanger bolt and an integrated mounting plate for secure fastening
• Can be connected to conventional amplifiers
• Dust-tight and waterproof according to IP 68

• Walls and floor made of hard foam support elements for square, rectangular, or polygonal pools
• Optional: Extensions and/or technical solutions
• Accessories (optional): Individually compiled assembly and sealing material

• Walls and floor made of hard foam support elements for round or rounded pools
• Optional: Extensions and/or technical solutions
• Accessories (optional): Individually compiled assembly and sealing material

• Suitable for installation in pool structures made of hard foam support elements or concrete
• Stairs in straight and round shapes
• Platforms
• Benches
• Accessories (optional): Individually compiled assembly and sealing material

• Prefabrication of recesses for fixtures, pipes, and technical components
• Factory integration of flush-mounted and built-in components, such as…
  • Railing fastenings
• Accessories (optional): Individually compiled assembly and sealing material

• Building kit for a round shower (floor, walls, ceiling)
• Shower base element, factory sealed with prefabricated gradient and floor drain fitting frame
• Shower partition wall elements in 3 segments with stable connection

Accessories (optional)

• Installation panel ADD-TE IPA for the fastening of fittings
• Finishing element for edges DECO-AE
• Matching, individually compiled assembly material

Special shapes

Alternatively we can also realise your individual planning as a customised product

• Building kit for a curved shower (floor, walls, ceiling)
• Shower base element, factory sealed with prefabricated gradient and floor drain fitting frame
• Shower partition wall elements in 6 segments with stable connection

Accessories (optional)

• Installation panel ADD-TE IPA for the fastening of fittings
• Finishing element for edges DECO-AE
• Matching, individually compiled assembly material

Special shapes

Alternatively we can also realise your individual planning as a customised product

LUX ELEMENTS is your specialist for bespoke productions in individual wellness facilities. Here you can see examples of individually planned shower units made of hard foam support elements.

Our competence:

Shower units – round or straight shapes in a row or at an angle, combinable with glass and metal constructions or fixtures for installations

LUX ELEMENTS is your specialist for bespoke productions in individual wellness facilities. Here you can see examples of individual furniture made of hard foam support elements in the wellness area.

Our competence:

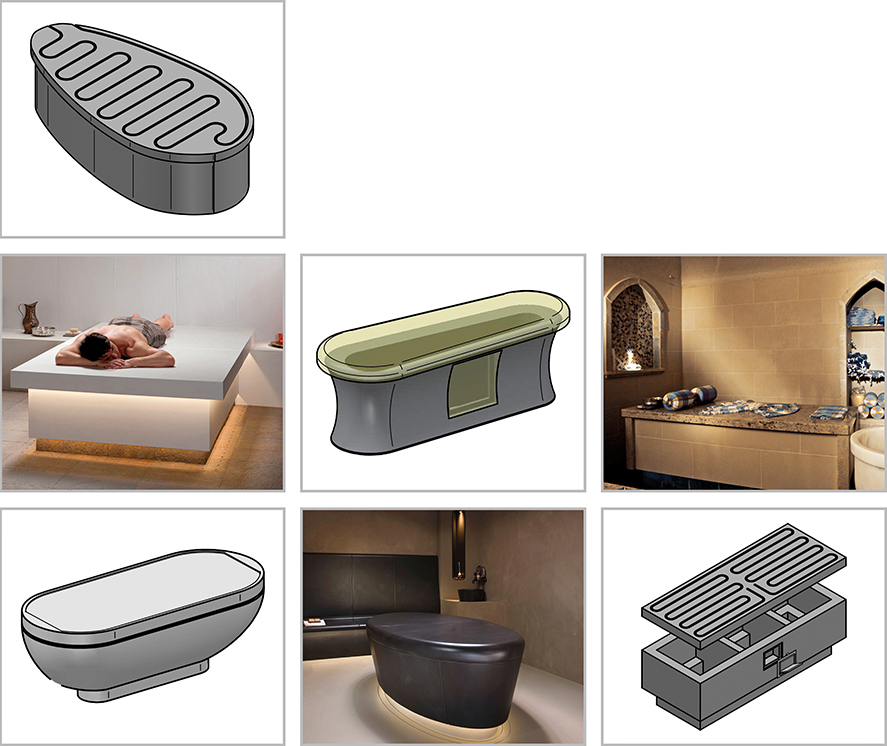

• Massage tables – with or without heating
• Footbaths – with or without bench seat
• Fountains – e.g. ice fountains
• Steps / platform
• Partition walls

• Three different design variants as standard
• Optionally with or without electrical heating system
• Separate thermostatic controllers in different versions
• Optionally also with water heating

Special shapes – alternatively we can also realise your individual planning as a customised product

Concave trims – DECO-HK

• In two sizes as standard
• For negative rounding of corners
• Decorative and functional
• Avoids the accumulation of water in corners
• Greater hygiene through easy cleaning

Curvature elements – DECO-AE

• For the rounding of sharp finishing edges
• Decorative and functional
• Combinable with round shower RELAX-RD and curved shower RELAX-SD

Special shapes – alternatively we can also realise your individual planning as a customised product

On account of its outstanding physical properties in combination with very good workability, this moisture-resistant and modern building material creates free space for planners, designers, tradesmen and industry – whether in the form of panels, blanks or ready-made products.
